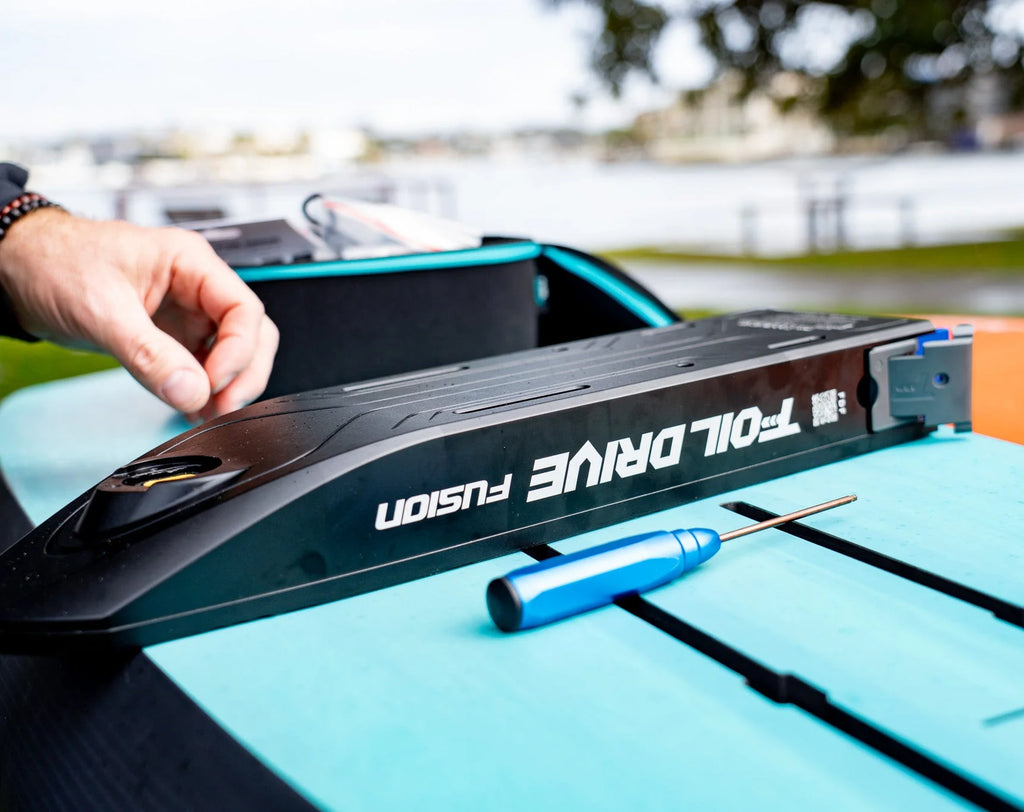

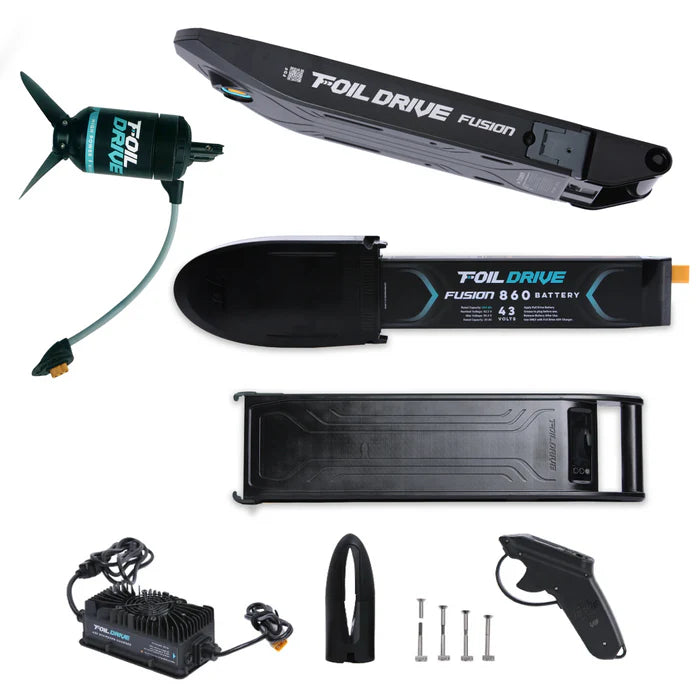

Fusion (Gen 2.5)

Flagship Power • Longest Runtime • Maximum Confidence

Description:
The Fusion is the next-generation high-power system from Foil Drive. With a nominal system voltage of 43.2 V, battery capacity up to 864 Wh, and a maximum thrust of 34 kg (74.9 lbs), it delivers the strongest push and longest sessions in the lineup. It combines the performance of an e-foil with the agility of an assist system.

Key Specs:

• System Nominal Voltage: 43.2 V

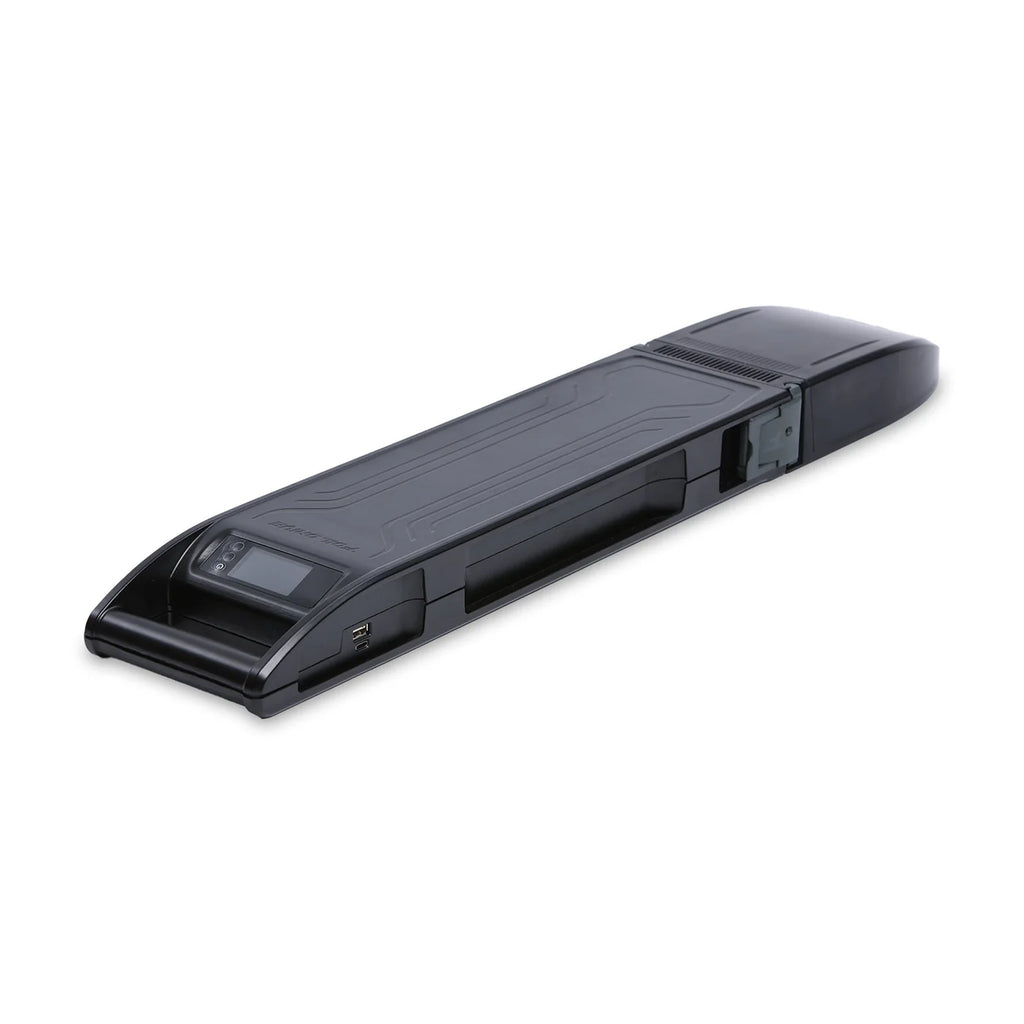

• Battery Capacity: 864 Wh
• Maximum Thrust: 34 kg / 74.9 lbs
• Minimum Install Weight: 7.9 kg / 17.4 lbs
• Dimensions (with battery): L 658 × W 125 × H 54 mm
• Water & Dust: IP68 rated
• Platform: Gen 2.5 electronics, IMU sensors, gear/boost modes, advanced cooling
• Typical Runtime: ± 1 to 1.5 hours (battery size, rider weight & usage dependent)

Who It’s For:

• Heavier riders or larger boards/foils
• Downwind or long-distance missions
• Riders who prioritise performance, range and maximum thrust
• SUP / wing / downwind setups that require strong lift

Why Riders Choose It:

• The highest thrust and longest runtime of the Foil Drive lineup
• Most advanced electronics and refined control
• Ideal for riders wanting maximum power and premium performance

Things to Consider:

• Heavier and bulkier than other models, requiring more board space
• Premium option in terms of cost
• Optimised for high-power, long-duration riding — typically used 80% e-foil / 20% surf
