Foil Drive Fusion

Flagship Power • Maximum Runtime • Ultimate Versatility

Description

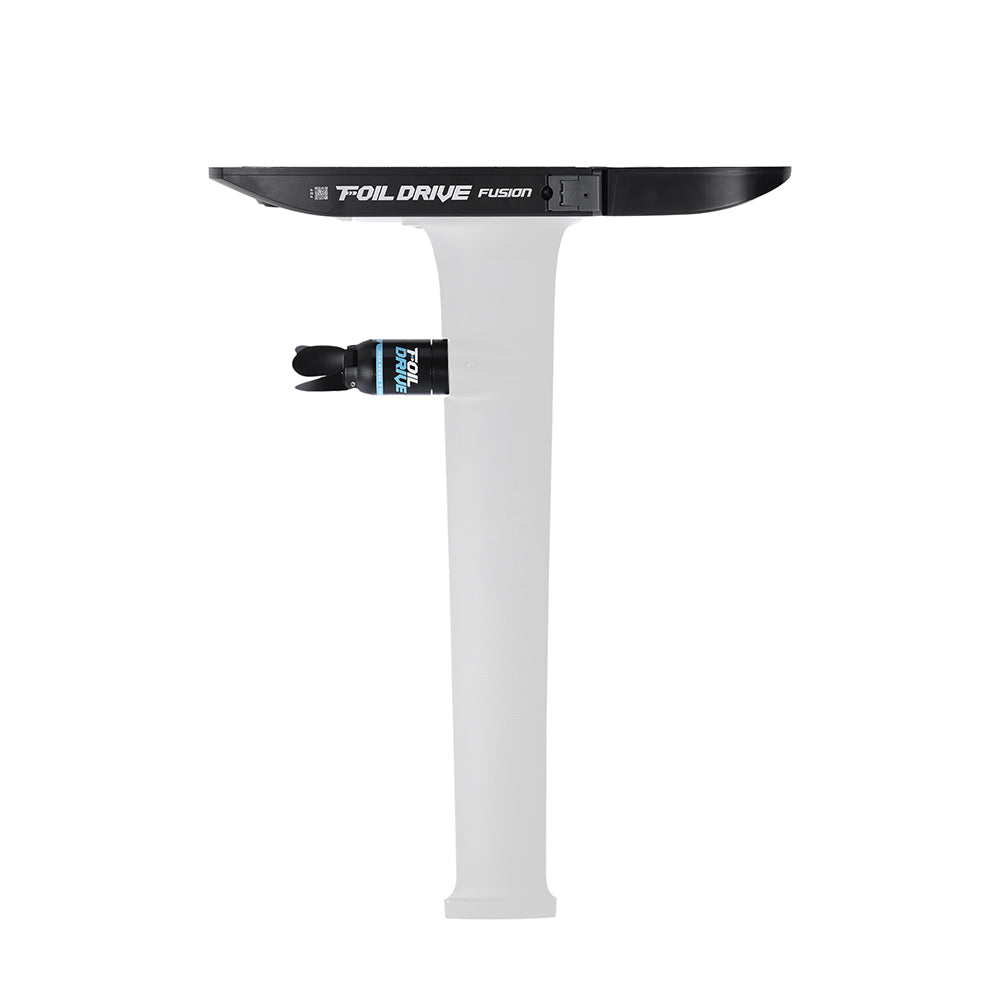

The Foil Drive Fusion is a powerful hybrid electric foil system that combines the power and runtime of an eFoil with the lighter weight, adaptability and responsive feel of a Foil Drive Assist.

Operating on Foil Drive’s 43.2 V Gen 2.5 platform, the Fusion delivers up to 37.5 kg of thrust and 2,370 W of peak boost power. It is designed for longer rides, heavier riders, learners and experienced foilers wanting maximum power and runtime.

Use it as a capable eFoil alternative for learning and long-distance riding, or pair it with a shorter motor cable to create a powerful, long-runtime Foil Assist. One system gives you the flexibility to ride surf, wing, downwind, wake and flatwater disciplines.

Key Specifications

• System voltage: 43.2 V
• Battery capacity range: 648–864 Wh
• Maximum thrust: 37.5 kg
• Peak boost power: 2,370 W
• Sustained power: 1,850 W
• Peak horsepower: 3.15 hp
• Sustained horsepower: 2.48 hp
• Minimum installed weight with FM+ 650 Battery: 7.13 kg
• Installed weight with Fusion 860 Battery: 8.08 kg
• Dimensions with battery: 658 × 125 × 54 mm
• Water and dust resistance: IP68
• Platform: Foil Drive Gen 2.5
• App compatibility: Foil Drive App for Android and iOS

Installed weight includes the unit, battery, Integrated High Power Motor, Three Blade Hub and propellers, and nosecone where applicable. A retrofit installation using a Mini Pod mounted at 20 cm adds approximately 360 g.

Key Features

• The highest power and longest runtime in the Foil Drive range
• V3 Controller with GPS speed, distance and session tracking
• IMU tilt sensor with automatic motor safety cutoff
• Robust one-piece battery with enhanced battery-management technology
• Bluetooth firmware connectivity
• Slide-in tool caddy
• Titanium split bolts
• Saltwater-protection anode
• Approximately 110-minute charging time for the Fusion 860 Battery with the supplied 12 A charger
• Storage-mode charging options
• Redesigned day-use and storage cases

Who Is It For?

• Riders weighing more than 100 kg
• Learners wanting greater stability and longer riding sessions
• Experienced riders wanting maximum power and runtime
• Riders looking for an adaptable eFoil alternative
• Downwind and long-distance riders
• Riders wanting one system for surf, wing, downwind, wake and flatwater use
• Setups requiring strong thrust and dependable lift

Why Riders Choose the Fusion

• Maximum thrust and runtime within the Foil Drive range
• Powerful eFoil-style performance with the adaptability of an assist system
• Suitable for both learning and performance riding
• Can be converted into a powerful, long-runtime Foil Assist by using a shorter motor cable
• Advanced Gen 2.5 electronics and integrated safety technology
• Multiple compatible battery options

Battery Compatibility

The Fusion is compatible with:

• Fusion 860 Battery – 864 Wh
• FM+ 650 Battery – 648 Wh when used with the FM+ Battery Adaptor
• FM+ 430 Battery – expected in early 2027
• Foil Drive 43 V chargers

Please note: The Fusion is not compatible with Foil Drive Gen 2 batteries.

Things to Consider

The Fusion is larger and heavier than Foil Drive’s lighter assist-focused systems, so it requires sufficient board space and should be matched to a suitable board and foil setup.

It is Foil Drive’s premium option for riders who prioritise maximum power, longer runtime and versatility across multiple foiling disciplines.
