Foil Drive Assist MAX+

All-Round Performance • More Power • More Runtime

Description

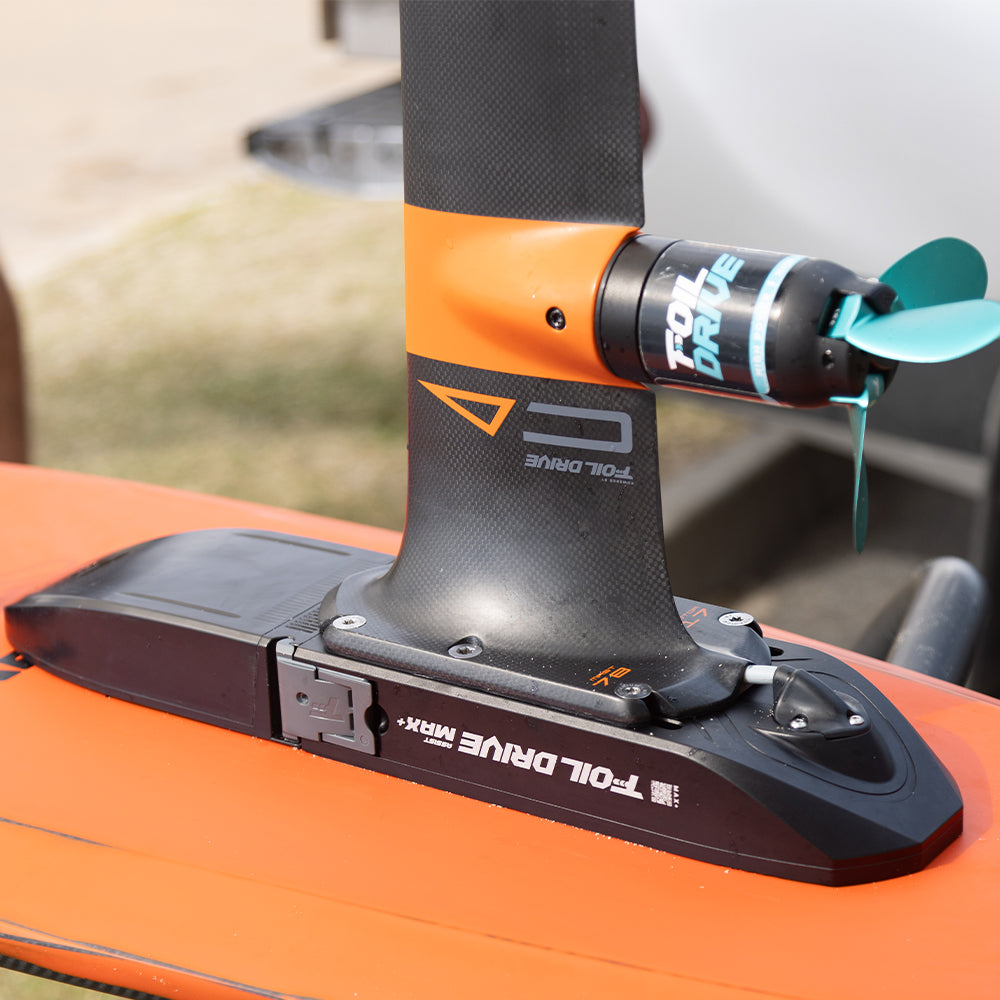

The new Foil Drive Assist MAX+ replaces the original MAX as Foil Drive’s versatile all-round assist system. It is designed for riders wanting an excellent balance of power, runtime, weight and natural ride feel.

Built on Foil Drive’s 43.2 V architecture, the MAX+ produces up to 35.5 kg of thrust and 2,150 W of peak boost power. Its compact design and durable one-piece FM+ 650 Battery provide increased power and runtime while retaining the lightweight, balanced feel that made the original MAX so popular.

Whether you are surfing, winging, downwinding, wake foiling, practising flatwater take-offs or exploring smaller boards and foils, the MAX+ gives you the additional thrust and confidence to make every session more accessible and productive.

Key Specifications

• System voltage: 43.2 V
• Battery capacity: 648 Wh
• Maximum thrust: 35.5 kg
• Peak boost power: 2,150 W
• Sustained power: 1,750 W
• Peak horsepower: 2.88 hp
• Sustained horsepower: 2.35 hp
• Minimum installed weight: 6.71 kg
• Dimensions with battery: 540 × 125 × 55 mm
• Water and dust resistance: IP68
• App compatibility: Foil Drive App for Android and iOS

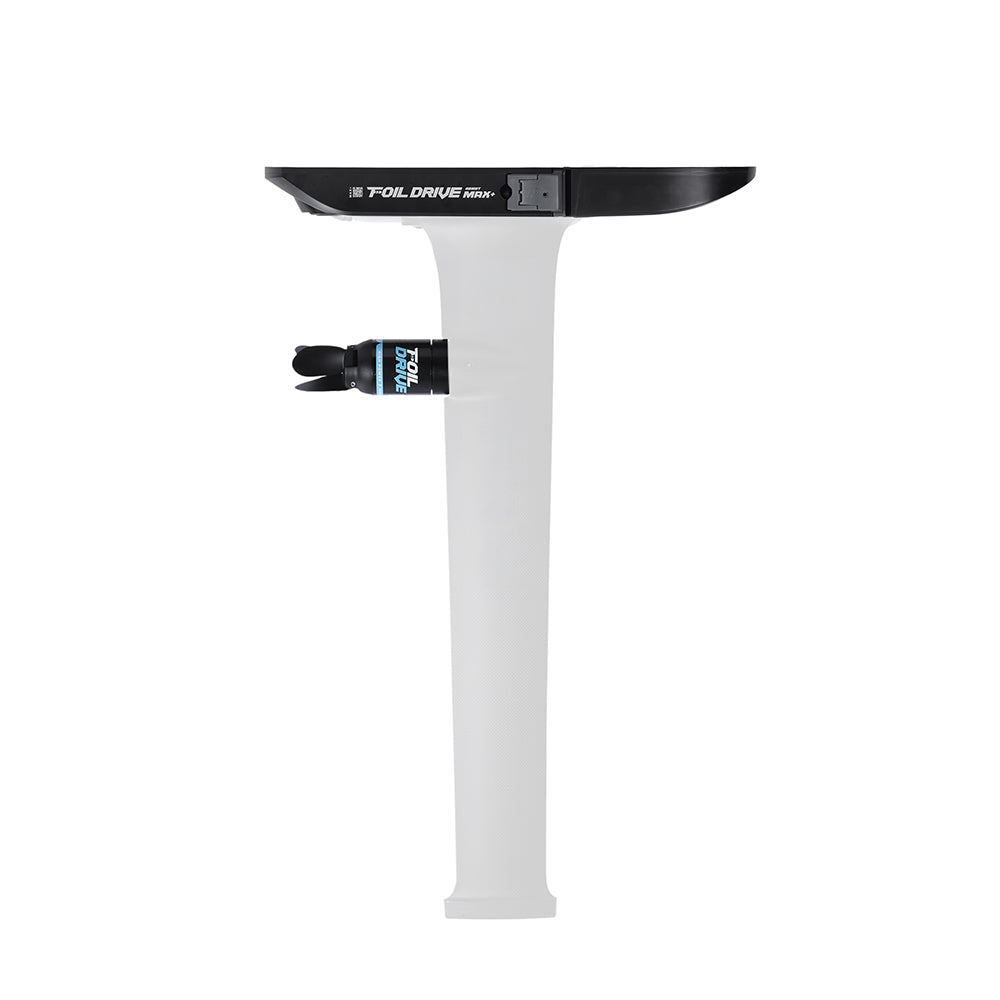

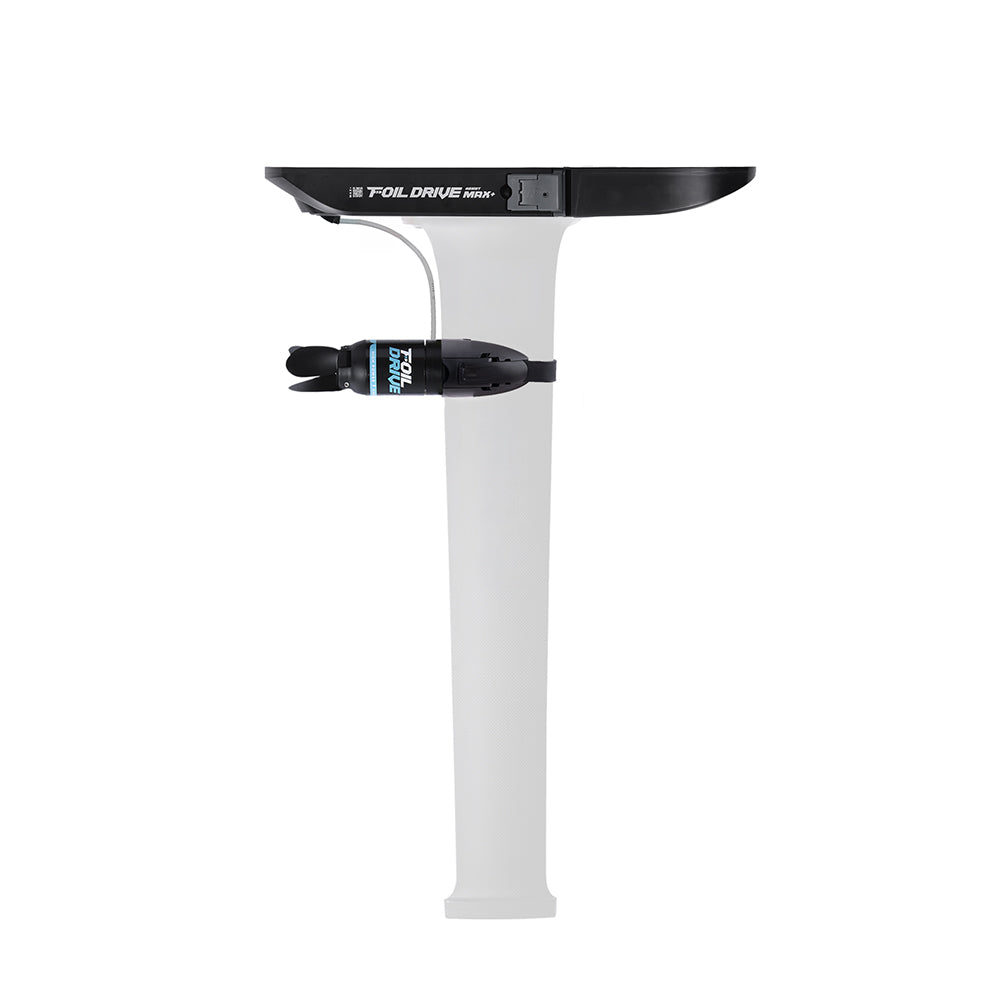

Installed weight includes the MAX+ unit, FM+ 650 Battery, Integrated High Power Motor, Three Blade Hub and propellers, and nosecone where applicable. A retrofit installation using a Mini Pod mounted at 20 cm adds approximately 360 g.

Key Features

• Powerful 43.2 V Foil Drive architecture
• Up to 35.5 kg of maximum thrust
• Compact and lightweight all-round design
• Durable one-piece FM+ 650 Battery
• Excellent balance of power, runtime and natural ride feel
• V3 Controller with protective bump guard
• Slide-in tool caddy
• Titanium split bolts
• Saltwater-protection anode
• Foil Drive App compatibility
• Suitable for a wide range of foiling disciplines and conditions

Who Is It For?

• Riders of all experience levels weighing under 100 kg
• Riders using small to medium-length boards
• Surf foilers wanting longer sessions and a higher wave count
• Downwind riders wanting to motor upwind without arranging a shuttle
• Riders practising pumping or repeated flatwater take-offs
• Wake foilers wanting to chase and ride boat swells
• Riders wanting faster recovery after a fall
• Advanced riders prioritising lower weight without sacrificing power
• Riders wanting to use smaller boards and foils with greater confidence

Why Riders Choose the MAX+

• More power, runtime and range than the original MAX
• Compact and balanced design with minimal effect on ride feel
• Strong 35.5 kg maximum thrust
• Easier and faster flatwater take-offs
• Increased confidence when riding smaller boards and foils
• Faster recovery between falls for more time on foil
• Suitable for surf, wing, downwind, wake, flatwater and powered foiling
• An excellent all-round option for recreational and advanced riders

Battery Compatibility

The MAX+ is supplied with and compatible with:

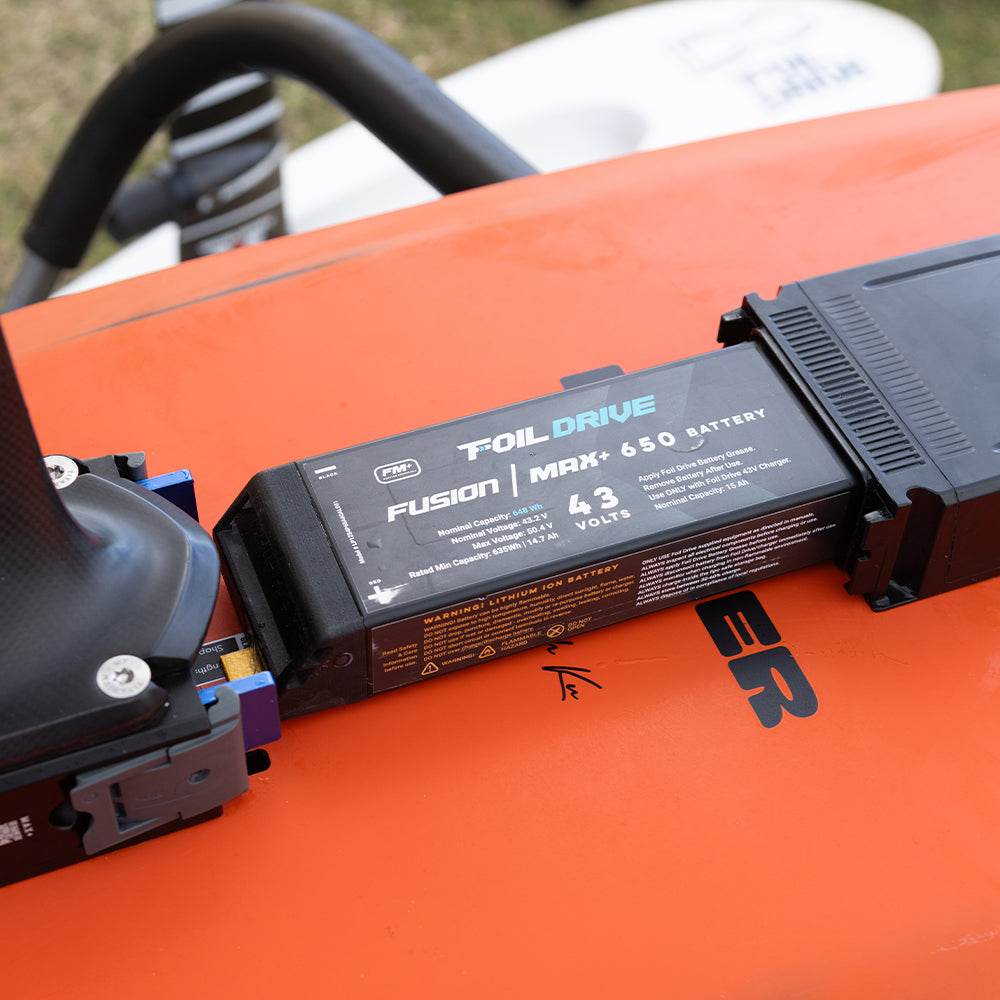

• FM+ 650 Battery – 648 Wh
• Foil Drive 43 V chargers

Please note: The MAX+ is not compatible with Foil Drive Gen 2 batteries.

What’s Included

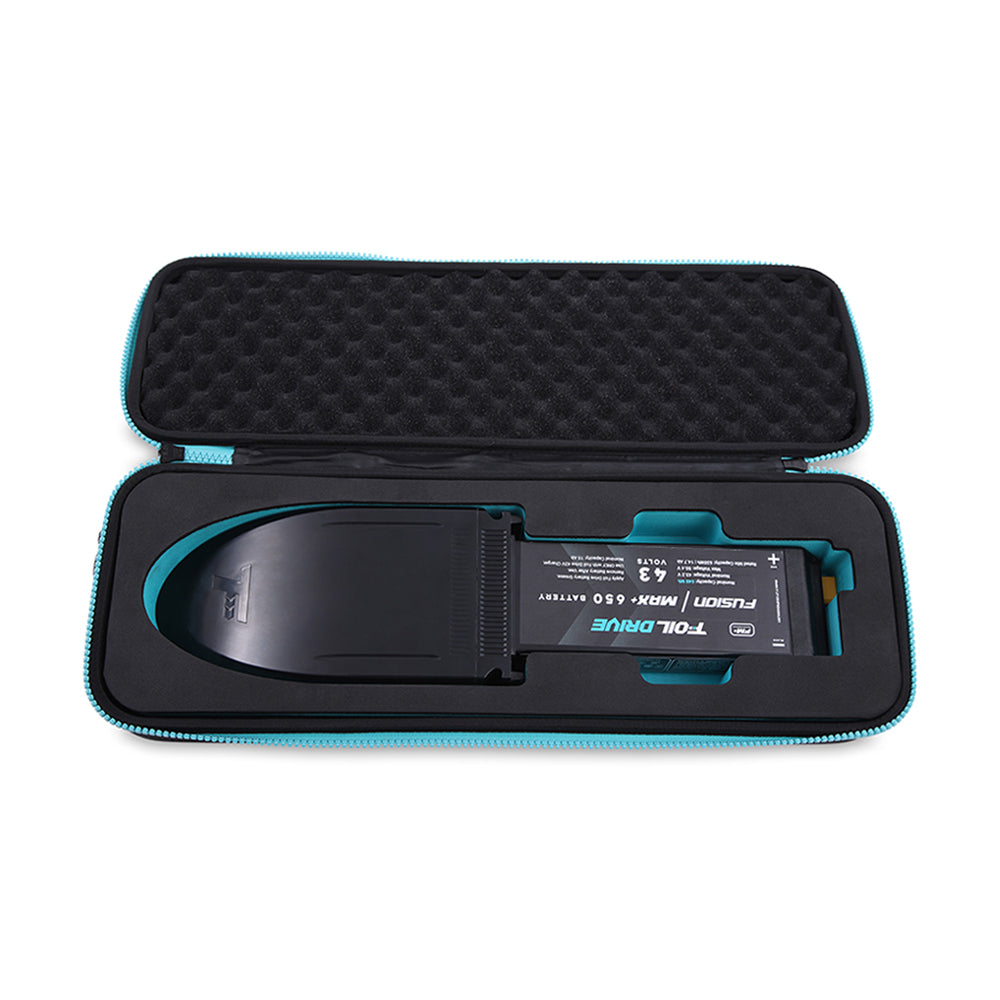

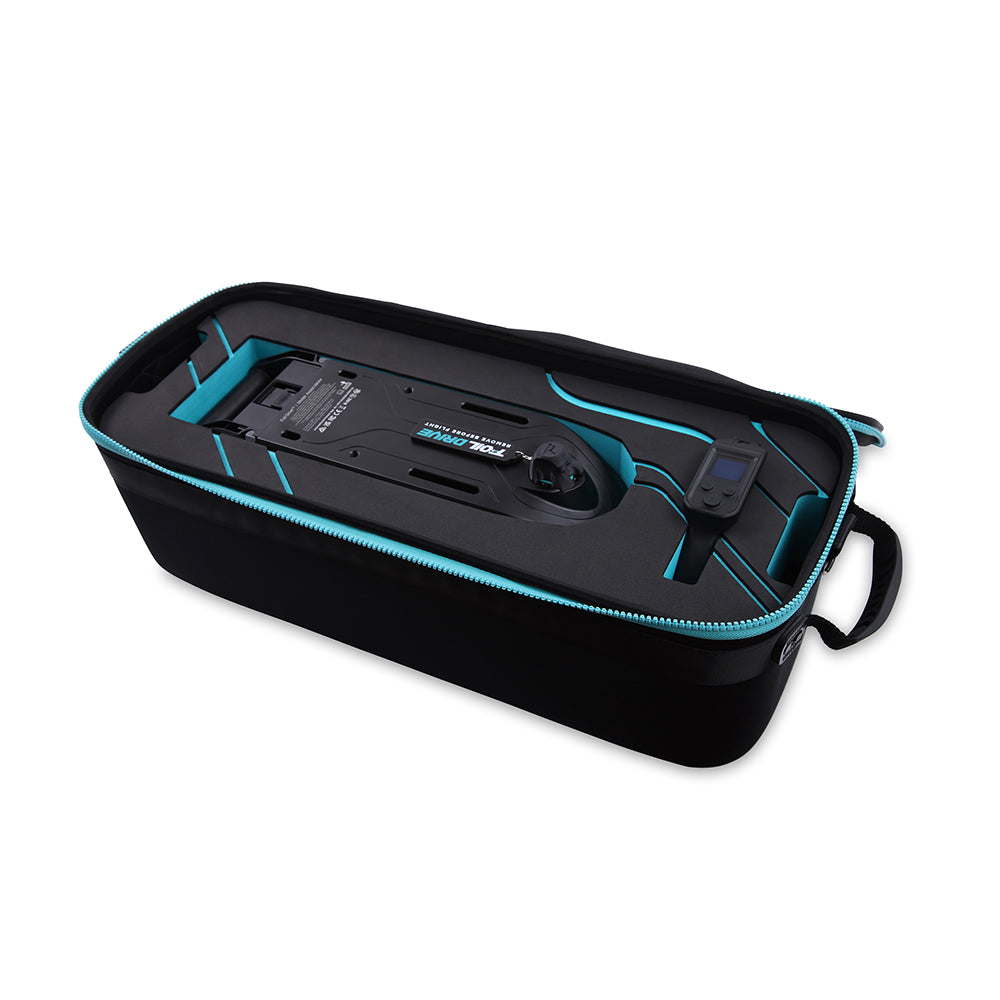

• Foil Drive Assist MAX+ in protective case
• FM+ 650 Battery
• Your selected motor option
• V3 Controller with bump guard installed
• 43 V Standard 12 A Charger
• Selected AC power lead
• Four titanium T40 M7 split bolts
• Controller accessories case
• USB-C charging pad and cable
• Controller wrist leash
• Foil Drive tools and maintenance hardware
• Battery grease
• Replacement O-rings
• Replacement anode kit
• Mast foam track guides
• Integrated tool caddy
• Microfibre towel
• Sticker pack and user manuals

Things to Consider

The MAX+ is designed primarily for riders weighing under 100 kg who use small to medium-length boards. Riders above 100 kg, learners wanting maximum stability, or riders prioritising the longest possible runtime should consider the more powerful Foil Drive Fusion.

The MAX+ uses Foil Drive’s newer 43.2 V battery platform and is not compatible with older Gen 2 batteries.
